Project Capability

VALVE AUTOMATION

Our Valve Automation division provides customers around the world with high quality, cost- effective tailor madeValve Automation Solutions for wide range of industrial process applications with virtually any valve including quarter turn multi-turn, short stroke linear precision type with Pneumatic / Electric Actuators and accessories such as Solenoid valves

Limit switches, Positioners, Air Filter Regulators, Quick exhaust valve, Silencer etc.. We deliver the proven performance andeliable products that our customers deserve, we excel with our dedication towards a culture ofprompt & responsive after sales services.

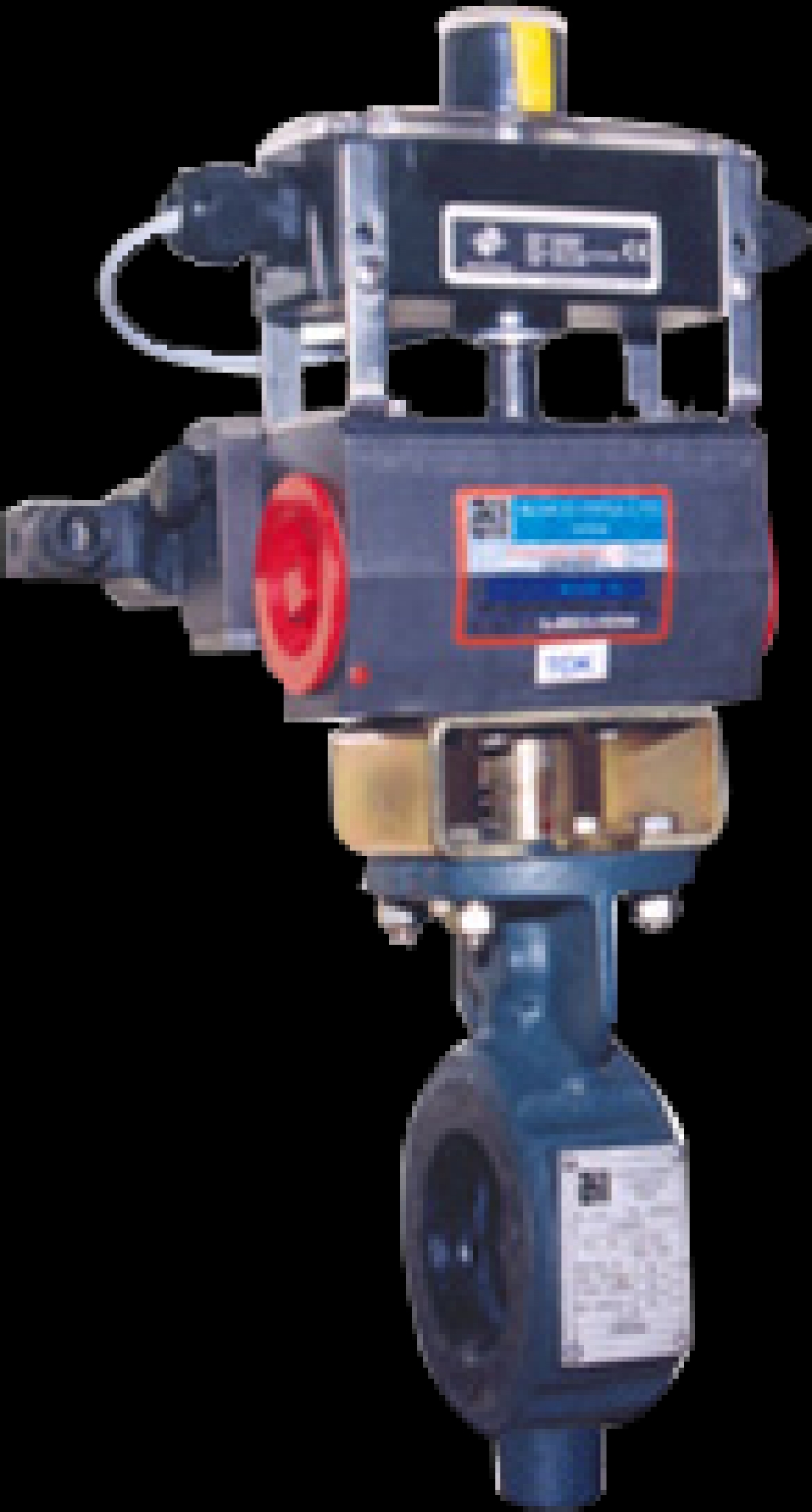

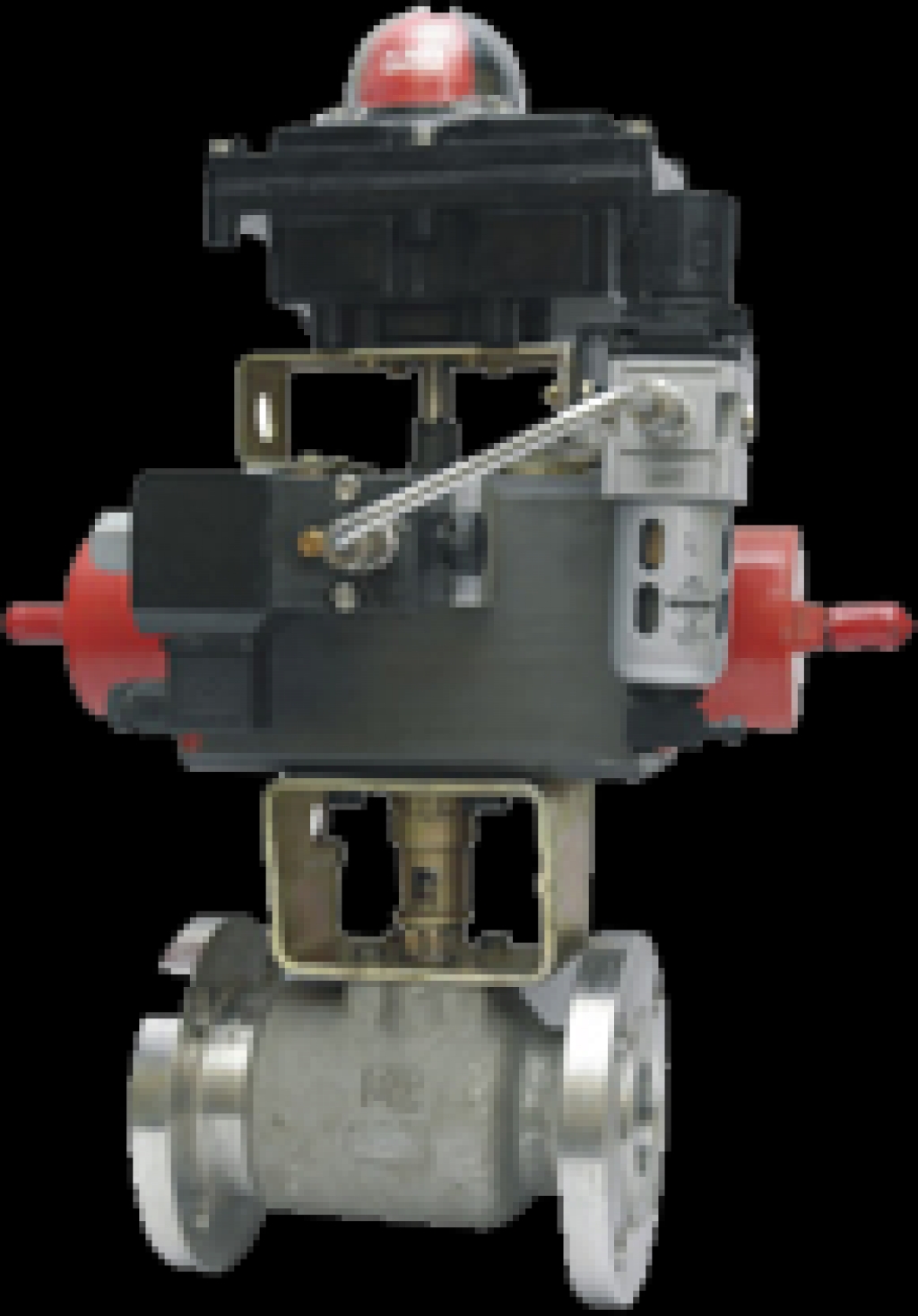

Pneumatic Actuators :

Double Acting Actuators
Spring Return Actuators
Piston Cylinder Actuators
Diaphragm Actuators
180 degree Actuators

Accessories

Solenoid valves
Limit switches
Proximity switches
Pneumatic positioners
Electro pneumatic positioners
Position transmitters
Manual over ride
Air filter regulator with gauge
Air tank assemblies
Junction boxes
Flow control valve assemblies
Silencers
SS / Nylon tubing and fittings
Air lock relays
Quick exhaust valves
Fusible links

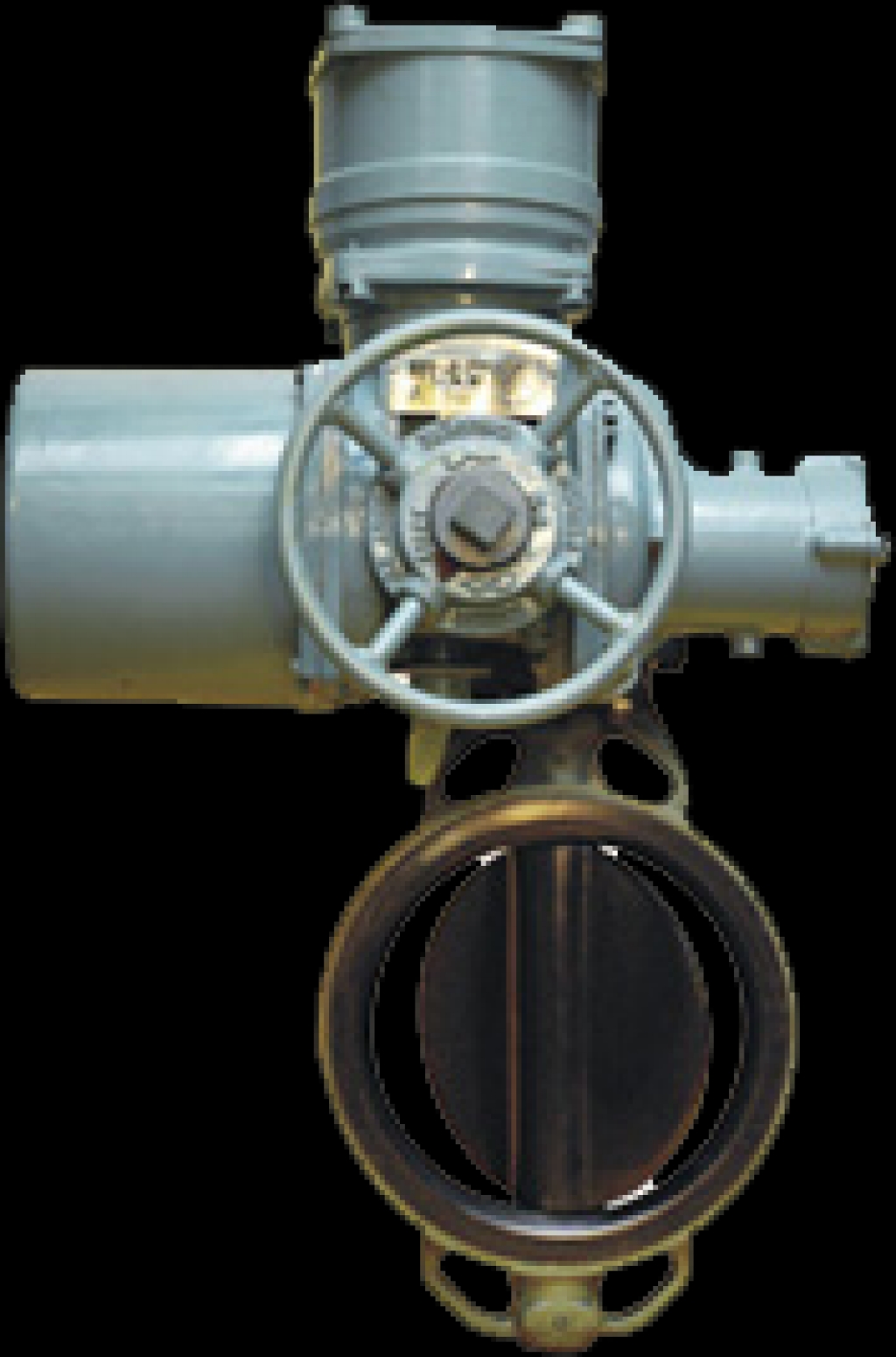

Electrical Actuators:

Single phase quarter turn actuators
Three phase quarter turn actuators
Modulating electrical actuators
Damper actuators
Supply voltage 24VDC/110VAC/230VAC/415VAC

Accessories

Standard:

Limit switch (1No + 1Nc) - 2Nos (Rating 10A - 250 VAC)
Hand wheel
Local position indicator
Adjustable mechanical stoppers

Optional

Auxiliary limit switches (1No + 1Nc) - 4 Nos
Torque limit switches (1No + 1Nc) - 2Nos
Three position switch for ON/OFF operation Field/Panel Mounted
Feedback Potentiometer
Valve positioner Field / Panel mounted input: 4-20 mA/0-10 V DC. Output ; Proportional
Two wire transmitter field / panel mounted Input: From potentiometer in actuator
100 to 235 ohms or 0-1000 ohms Output : 4-20 mA two wire
Remote position indicator - Digital
Space heater

Special accessories on request
